Precision Machining Admiralty Brass Tube C44300/C27000/C6870
Product Categary:
Main Feature:
Precision Machining Admiralty Brass Tube C44300/C27000/C68700 Haohua Industry hold expertise in manufacturing and exporting an extensive range of Admiralty Brass Tubes Admiralty Brass Pipes and Admiralty Brass Tubing. These are offered in
product description

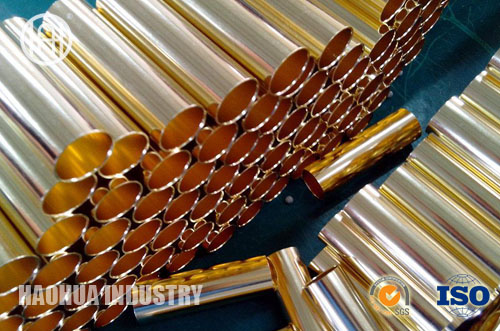

Precision Machining Admiralty Brass Tube C44300/C27000/C68700
Haohua Industry hold expertise in manufacturing and exporting an extensive range of Admiralty Brass Tubes, Admiralty Brass Pipes and Admiralty Brass Tubing. These are offered in different sizes, thicknesses, specifications and extensively used in petrochemical, power plant and varied other industries. In our state-of-the-art manufacturing unit, these Admiralty Brass Tubes/Pipes are machined as per the defined industry standards and offered at market leading prices.
Technical Specifications :
|
Specification : |
|
|
Admiralty Brass Tubes |
ASTM B 111 C 44300 ASME SB 111 C 44300 BS 2871 Part 3 CZ - 111 EN 12451 CuZn28 Sn1As NFA 51 102 CuZn29Sn1 JIS H 3300 C 4430 |
Salient features:Rugged construction
Durable finish standards
Accurate dimensions
Corrosion resistance
Application Areas:Automobile Industry
General Engineering Purposes
Industrial Refrigeration
Heat Exchanger
Radiator
Condenser Copper Tubes
Evaporator Copper Tubes
|
Standard |
BS 2871 PART3 |
ASTM B 111 |
DIN 1785 |
NFA 51 102 |
JIS H3300 |
IS 1545 |
|
Symbol |
CZ 111 |
C 44300 |
CuZn28Sn1 |
CuZn29Sn1 |
C 4430 |
CuZn29Sn1As |
|
Cu |
70.0-73.0 |
70.0-73.0 |
70.0-72.5 |
70.0-73.0 |
70.0-73.0 |
70.0-73.0 |
|
Sn |
1.0-1.5 |
0.9-1.2 |
0.9-1.3 |
0.9-1.2 |
0.9-1.2 |
1.0-1.5 |
|
Pb |
0.07 |
0.07 |
0.07 |
0.07 |
0.07 |
0.07 |
|
Ni |
- |
- |
0.1 |
- |
- |
- |
|
Fe |
0.06 |
0.06 |
0.07 |
0.06 |
0.06 |
0.06 |
|
Zn |
REM'DER |
REM'DER |
REM'DER |
REM'DER |
REM'DER |
REM'DER |
|
As |
0.02-0.06 |
0.02-0.06 |
0.02-0.035 |
0.02-0.06 |
0.02-0.06 |
0.02-0.06 |
|
P |
- |
- |
0.01 |
- |
- |
- |
|
Total Impurities Max. |
|
|
|
|
- |
|
|
|
0.03 |
- |
0.1 |
0.3 |
- |
0.3 |
|
Condition |
M |
61 |
F36 |
- |
- |
O |
|
|
TA |
- |
F32 |
- |
O |
TA |
|
|
O |
- |
- |
- |
- |
D |
|
Yield Strength N/MM2 |
- |
- |
140-220 |
- |
- |
- |
|
|
- |
105 |
100-170 |
- |
- |
- |
|
Tensile N/MM2 Minimum |
- |
310 |
360 |
- |
- |
375 Mpa Max. |
|
|
- |
- |
320 |
- |
314Min. |
340 Mpa Min. |
|
|
- |
- |
- |
- |
- |
385 Mpa Min. |
|
Elng'Tion Percent (%) Minimum |
- |
- |
45Min. |
- |
-. |
- |
|
|
- |
- |
55Min. |
- |
30 Min. |
- |
|
Hardness HV5 - |
150Min |
- |
- |
- |
- |
80 Max. |
|
|
85-105 |
- |
- |
80-120 |
- |
80-105 |
|
|
75Max. |
- |
- |
- |
- |
130 Min. |
|
Grain Size mm (75X) |
0.05Max. |
0.010-0.045 |
- |
0.010-0.045 |
0.010-0.045 |
0.010-0.04 |
STANDARD : BS, ASTM, DIN, JIS, IS
Product Application Areas :
Heat Exchangers, Refineries, Power Plants, Desalination Plants, Ship Building & Ship Repairs, Condensers, Ferrules, Distillers.
Characteristic :
A Copper Zinc Alloy containing tin and small amount of Arsenic, which is added as an inhibitor against dezincification. The pressure of Tin imparts to the alloy good corrosion resistance in a moderately polluted river water and clean seawater, either stagnant or slow moving (upto about 2 mtrs/sec.). The most common and wrought form is tube for heat exchange equipment. Guide to the selection of tube material:Clear river, Lake or Canal Water.a. Dissolved salts more than 2000 ppm.b. Chloride less then 20 ppm.c. H2S and Ammonia is less than 1 ppm.d. Suspended solids less than 25 ppm.e. For temperature more than 2000C and less than 4500 C.Permissible average velocity of water 1.8-2.0 meters/sec.
