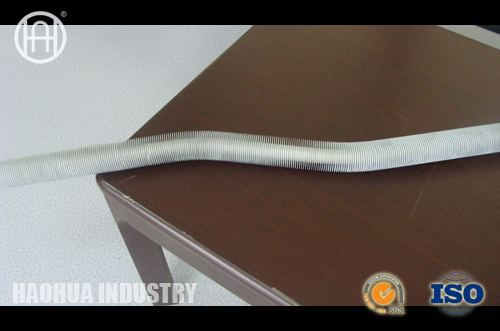

Embedded Aluminum 1070 Fin with stainless bare tubes

Product Categary:

Extruded & Embedded Aluminum F

Main Feature:

Jiangsu Haohua Industry Group as one of the leading suppliers in China to supply Embedded Aluminum 1070 Fin with stainless bare tubes for petroleum industry and Heat Exchanger industry and Machining Industry etc.

product description

Sample of extruded & serrated fin

tubes

1100AL fin embedded in SA304

tubes

Embedded fin tubes in

packing status

Sample of extruded fin tubes in

ASTMA789 UNS31250 materials

extruded fin tubes in different

specifications & materials

Sample of extruded fin tubes in di

fferent specifications & materials

Sample of extruded fin tubes in

ASTMA789 UNS31803materials

U type extruded fin tubes in

ASTMA213 TP316Lmaterial

Sample of extruded &

serrated fin tubes

Extruded & serrated fin tubes,

exclusively

Extruded fin tubes in duplex

stainless steel mass production

Spiral Wrapping extruded fin tubes

in ASTMA213 TP304Lmaterial

Extruded fin tubes in

mass production

Extruded & serrated fin tubes,

material 6063

Extruded fin tubes with SA213

stainless base tube





Embedded Aluminum 1070 Fin with stainless bare tubes Description:

Detailed Product Description
1) Quality Extruded Fin Tubes
2) Highly Competitive Rates
3) Well Experienced Team
4) Delivery Within Stipulated Time Frame

Leading Manufacturer of Extruded Aluminum Fin Tubes.
We will guarantee that you receive a high-quality product at a highly-competitive price.

Product Range:
Finned Tube OD: ø25-ø88 mm
Fin Thickness: 0.25-0.45 mm
Fin pitch: to your requirement

Welded Finned tubes:
Material: stainless steel, carbon steel, alloy
Bare tube size: OD16mm-OD219mm
Fins Pitch:3mm-25mm
Fins Height:9mm-25mm
Fin thickness:1-3mm

Fin material: Aluminium
Base tube material: Any metallic material

Manufacture:
A core tube is fitted into an aluminium primary tube. This assembly is then fed into the triple-spindle finning machine.

Three special multi-disc packs extrude the aluminium tube into helical high fins while reducing the inner diameter to give

firm pressure contact with the core tube.

Application:
*Air cooling unit
*Product coolers - gas, chemicals, petrochemicals, oil etc.
*Heat exchangers

High-efficiency fins for higher temperature applications giving complete and permanent atmospheric corrosion protection of

the base tube.
