Sample of extruded & serrated fin tubes	1100AL fin embedded in SA304 tubes	Embedded fin tubes in packing status
Sample of extruded fin tubes in ASTMA789 UNS31250 materials	extruded fin tubes in different specifications & materials	Sample of extruded fin tubes in di fferent specifications & materials
Sample of extruded fin tubes in ASTMA789 UNS31803materials	U type extruded fin tubes in ASTMA213 TP316Lmaterial	Sample of extruded & serrated fin tubes
Extruded & serrated fin tubes, exclusively	Extruded fin tubes in duplex stainless steel mass production	Spiral Wrapping extruded fin tubes in ASTMA213 TP304Lmaterial

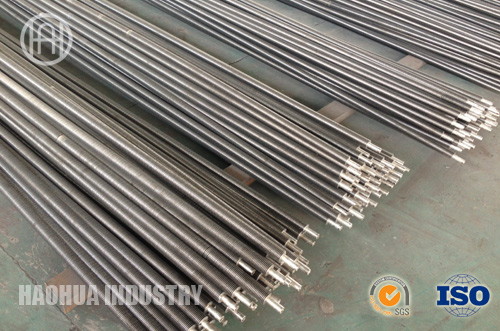

Extruded fin tubes in mass production	Extruded & serrated fin tubes, material 6063	Extruded fin tubes with SA213 stainless base tube

 Embedded Fin with stainless bare tubes TP304L

Description:

Detailed Product Description
1) Quality Extruded Fin Tubes
2) Highly Competitive Rates
3) Well Experienced Team
4) Delivery Within Stipulated Time Frame

Leading Manufacturer of Extruded Aluminum Fin Tubes.
We will guarantee that you receive a high-quality product at a highly-competitive price.

Product Range:
Finned Tube OD: ø25-ø88 mm
Fin Thickness: 0.25-0.45 mm
Fin pitch: to your requirement

Welded Finned tubes:
Material: stainless steel, carbon steel, alloy
Bare tube size: OD16mm-OD219mm
Fins Pitch:3mm-25mm
Fins Height:9mm-25mm
Fin thickness:1-3mm

Fin material: Aluminium
Base tube material: Any metallic material

Manufacture:
A core tube is fitted into an aluminium primary tube. This assembly is then fed into the triple-spindle finning machine.

Three special multi-disc packs extrude the aluminium tube into helical high fins while reducing the inner diameter to give

firm pressure contact with the core tube.

Application:
*Air cooling unit
*Product coolers - gas, chemicals, petrochemicals, oil etc.
*Heat exchangers

High-efficiency fins for higher temperature applications giving complete and permanent atmospheric corrosion protection of

the base tube.
