Serrated Finned Tubes

Product Categary:

Serrated Fin tube

Main Feature:

Jiangsu Haohua Industry Group as one of the leading suppliers in China to supply Serrated Finned Tubes etc. [Contact person:Mr eric; Email: eric@haopipe.com ; Mob: 0086-173-512-60050]

product description

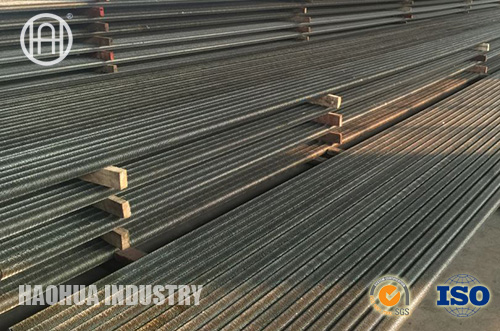

Serrated Finned Tubes

Serrated Finned Tubes short for High Frequency Welded Helical Spiral Serrated Finned Tube



Helical serrated finned tube, the serrated fin is a metal strip that has been serrated or cut and then helically wound around the base tube. Others are same as high frequency welded solid fin pipes.



The important features of this configuration are efficient, effective bond of fin to tube under all conditions of temperature and pressure, and ability to withstand high fin side temperatures. This serrated fin configuration is even better to withstand the fin fouling if that is a problem in the application. This gives better heat transfer properties compared to solid fins



Technical Details

Base Tube Details

Tube Diameter : 20 mm OD Min to 219 mm OD Max.

Tube Thickness : Minimum 2 mm up to 16mm

Tube Material : Carbon Steel, Stainless Steel, Alloy Steel, Corten steel, duplex Steel, Super Duplex Steel, Inconel, High Chrome High Nickle & Incolloy, CK 20 material and some other material.



Fin Details

Fins Thickness : Min. 0.8 mm to Max. 4 mm

Fins Height : Min 0.25” (6.35 mm) To Max.1.5” (38 mm)

Fin Density : Min 43 Fins per Meter to Max. 287 Fins per Meter

Material : Carbon Steel, Stainless Steel, Alloy Steel, Corten steel, Duplex Steel and Incolloy.



For a rapid quotation, plz send with following requirement:

Number of pieces,

base tube: Diameter, thickness, length and material specification.

Fins: material specification, type (solid or serrated), height, thickness, spacing, finned length and unfinned sections. Weld prep details if required.

Delivery period required.
