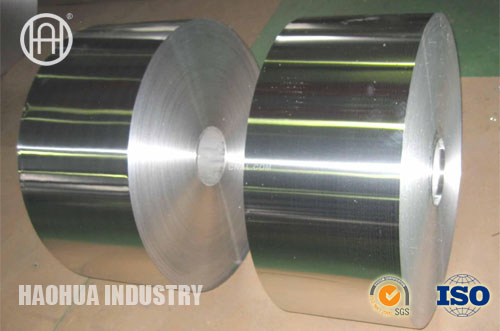

Aluminum Coil 3003

Product Categary:

Aluminium Products

Main Feature:

Aluminium Alloy coil(Jiangsu Haohua Industry Group) Aluminum in its various forms is stocked in a range of strengths varying from that of Specification 1100-0 (which has a yield strength of around 5000 lbs. per square inch) to that of Speci

product description

Aluminium Alloy coil(Jiangsu Haohua Industry Group)

Aluminum in its various forms is stocked in a range of strengths varying from that of Specification 1100-0 (which has a yield strength of around 5000 lbs. per square inch) to that of Specification 7075-T6 (yield strength of about 70,000 lbs. per square inch).
Here are a few typical applications within the range of these specifications –Utility Sheet, is used for all general sheet metal work such as flashings, ductwork, lining walls, etc.

1100-0 aluminum plate is used primarily for spinning and deep drawing operations such as utensils, ornaments, etc.
1100-H14 and 3003-H14 are specification alloys used for general forming operations.
5005-H14 aluminum plate produced by Taiwan lutian steel co., ltd similar in physical characteristics to 3003-H14 with superior corrosion resistance and a homogenous smooth surface finish suitable for anodizing. This
alloy is suitable for curtain walls, decorative trim, control panel boxes and signs, etc.
5052-H32 and H34 is a superior strength alloy of good forming qualities and is especially suited for Marine applications.
5083-H321 and H323 aluminum plate and coil is one alloy of different tempers that produces high weld joint efficiencies. It is used for tank work, heavy transport, etc., where its welded properties can be used to
advantage
5454-H32 is a sister alloy to 5083 with a lower rating to stress corrosion when functioning in the 150°F to 300°F range. Taiwan lutian steel co., ltd. typical uses are truck dump bodies, tanker trucks, exhaust
stacks, chemical handling tanks on vessels, etc.
6061-T6 aluminum plate is an excellent all purpose alloy, having high strength and good corrosion resistance. It is used for all structural applications such as mine cars, logging chutes, and ship
construction.
Painted Aluminum plate: 1100, 3003, 3105, 5005 and 5052 are just some of common alloys available in painted product. Painted aluminum is produced in a broad range of mechanical properties and the spectrum of finishes includes high durability exterior coatings, specialized epoxies, polyesters, textured polyesters, fluorocarbons and metallics as well as wash coat primers. Taiwan lutian steel co., ltd. Standard colours can be selected from or custom colour matching can be done to specification. Most coatings are available on one
and two sides.





Material 1, 2, 3, 5, 6, 7, 8 Series
Temper O, F, H14, H34, H32, H112, T4, T6
Surface treatment Mill Finish, Anodized, Electroplates, Powder Coated, Wooden Finish, Polished
Color Plain, Silver, Black, Red, Blue, or as required
Length 1000mm~6000mm, or as required
Shape Plain, bossed, or as per the drawings and samples
Fabrication Cutting, drilling, punching, bending, etc
Tolerances As per your requirements
Package inner plastic paper interleaving each piece profile, outer fixed by plywood;
Payment terms T/T or L/C at sight
Price terms FOB; CIF
Delivery time 15~20 days after order confirmation
Certification ISO 9001:2008; SGS
Application Decorations, Fence, Building, Aviation industry, Mechanical equipment
Capacity 5000 tons per month
MOQ 1 Metric ton
