Aluminum Sheet 5754
Product Categary:
Main Feature:
Aluminum Sheet 5754(Jiangsu Haohua Industry Group) Aluminum in its various forms is stocked in a range of strengths varying from that of Specification 1100-0 (which has a yield strength of around 5000 lbs. per square inch) to that of Specif
product description

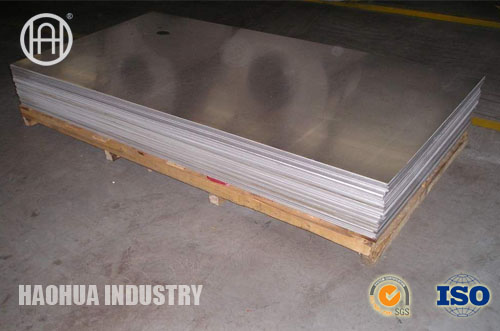

Aluminum Sheet 5754(Jiangsu Haohua Industry Group)
Aluminum in its various forms is stocked in a range of strengths varying from that of Specification 1100-0 (which has a yield strength of around 5000 lbs. per square inch) to that of Specification 7075-T6 (yield strength of about 70,000 lbs. per square inch).
Here are a few typical applications within the range of these specifications –Utility Sheet, is used for all general sheet metal work such as flashings, ductwork, lining walls, etc.
1100-0 aluminum plate is used primarily for spinning and deep drawing operations such as utensils, ornaments, etc.
1100-H14 and 3003-H14 are specification alloys used for general forming operations.
5005-H14 aluminum plate produced by Taiwan lutian steel co., ltd similar in physical characteristics to 3003-H14 with superior corrosion resistance and a homogenous smooth surface finish suitable for anodizing. This
alloy is suitable for curtain walls, decorative trim, control panel boxes and signs, etc.
alloy is suitable for curtain walls, decorative trim, control panel boxes and signs, etc.
5052-H32 and H34 is a superior strength alloy of good forming qualities and is especially suited for Marine applications.
5083-H321 and H323 aluminum plate and coil is one alloy of different tempers that produces high weld joint efficiencies. It is used for tank work, heavy transport, etc., where its welded properties can be used to
advantage
advantage
5454-H32 is a sister alloy to 5083 with a lower rating to stress corrosion when functioning in the 150°F to 300°F range. Taiwan lutian steel co., ltd. typical uses are truck dump bodies, tanker trucks, exhaust
stacks, chemical handling tanks on vessels, etc.
stacks, chemical handling tanks on vessels, etc.
6061-T6 aluminum plate is an excellent all purpose alloy, having high strength and good corrosion resistance. It is used for all structural applications such as mine cars, logging chutes, and ship
construction.
construction.
Painted Aluminum plate: 1100, 3003, 3105, 5005 and 5052 are just some of common alloys available in painted product. Painted aluminum is produced in a broad range of mechanical properties and the spectrum of finishes includes high durability exterior coatings, specialized epoxies, polyesters, textured polyesters, fluorocarbons and metallics as well as wash coat primers. Taiwan lutian steel co., ltd. Standard colours can be selected from or custom colour matching can be done to specification. Most coatings are available on one
and two sides.
and two sides.
| Specification | Name: Aluminum Plates | |||||||||||
| Alloy: 5052, 5005, 5754, 5083 etc. | ||||||||||||
| Temper: O, H12, H22, H32, H14, H24, H26, H18, H112 etc. | ||||||||||||
| Thickness: 0.2-200mm | ||||||||||||
| Width: Up to 1800mm | ||||||||||||
| Length: up to 6000mm | ||||||||||||
| Surface treatment: mill finished, PVC coated, Print marks | ||||||||||||
| Feature | Machinability: It has relatively fair machinability. It is easier to machine in the hard temper than as annealed and the quality of finish is better if machined in the hard condition. Oil lubricants should be used for machining, except that very light cuts may be done dry. | |||||||||||
| Forming: It is readily formed at room temperature. Successive cold working decreases the formability. | ||||||||||||
| Heat Treatment: It cannot be hardened by means of heat treatment. It does harden due to cold working. | ||||||||||||
| Forging: It may be forged in the temperature range of 950 F down to 500 F | ||||||||||||
| Cold Working: The alloy cold works readily and may be formed by drawing or spinning. However the amount of cold work imparted by spinning makes intermediate annealing necessary. | ||||||||||||
| Annealing: Anneal at 650 F and air cool. | ||||||||||||
| Hardening: Hardens only from cold working. | ||||||||||||
| Application | hydraulic tubes, kitchen cabinets, small boats, home freezers, milk crates, aircraft tube, fencing, small boats, gas lines, refrigerator panels, utensils, welded pressure vessels, marine, auto aircraft cryogenics, drilling rigs, TV towers, transportation equipment, missile components etc. | |||||||||||
| Alloy | Chemical Component %≤ | |||||||||||
| Si | Fe | Cu | Mn | Mg | Cr | Ni | Zn | Ti | others | Al | ||
| single | total | |||||||||||
| 5052 | 0.25 | 0.4 | 0.1 | 0.1 | 2.2-2.8 | 0.15-0.3 | \ | 0.1 | \ | 0.05 | 0.15 | remainder |
| 5005 | 0.3 | 0.7 | 0.2 | 0.2 | 0.5-1.1 | 0.1 | \ | 0.25 | \ | 0.05 | 0.15 | remainder |
| 5754 | 0.4 | 0.4 | 0.1 | 0.5 | 2.6-3.6 | 0.3 | \ | 0.2 | 0.15 | 0.05 | 0.15 | remainder |
| 5083 | 0.4 | 0.4 | 0.1 | 0.4-1.0 | 4.0-4.9 | 0.05-0.25 | \ | 0.25 | 0.15 | 0.05 | 0.15 | remainder |
