Embossed aluminium coil

Product Categary:

Aluminium Products

Main Feature:

Embossed aluminium coil. Jiangsu Haohua Industry Group as one of the leading suppliers in China to supply embossed aluminium coil etc. Product Name embossed aluminium coil Temper A1100A3003A1050A8011 etc Thickness 0.02mm to 3.0mm Width S

product description

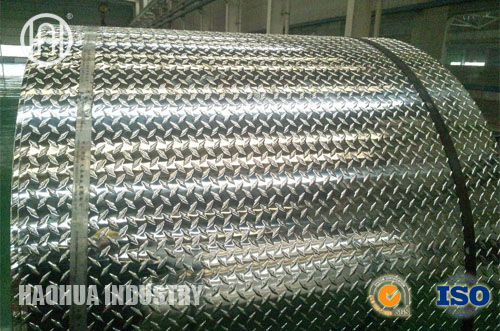

Embossed aluminium coil.

Jiangsu Haohua Industry Group as one of the leading suppliers in China to supply embossed aluminium coil etc.





Product Name

embossed aluminium coil

Temper

A1100,A3003,A1050,A8011 etc

Thickness

0.02mm to 3.0mm

Width

Standard width:1240mm;1200mm

all width: 30mm - 1600mm

Diameter

out dia:1200mm

Interior dia:405mm,505mm

Weight

2.5 T/coil,3.0 T/coil

Coating

PE,PVD,diamond embossed aluminium coil

Surface

Embossed,mill finish, back coated aluminium coils

Color

AS to all RAL color

Gloss

10-90%(EN ISO-2813:1994)

Coating Thickness

PE: more than 18 micron

PVDF: more than 25 micron

Coating Hardness

(pencil resistance)

More than 2h

Coating adhesion

5J(EN ISO-2409:1994)

Impact Resistance

No peeling or cracking(50 kg/cm,ASTMD-2794:1993)

Flexibility

(T-bend)

2T

MEK resistance

More than 100
